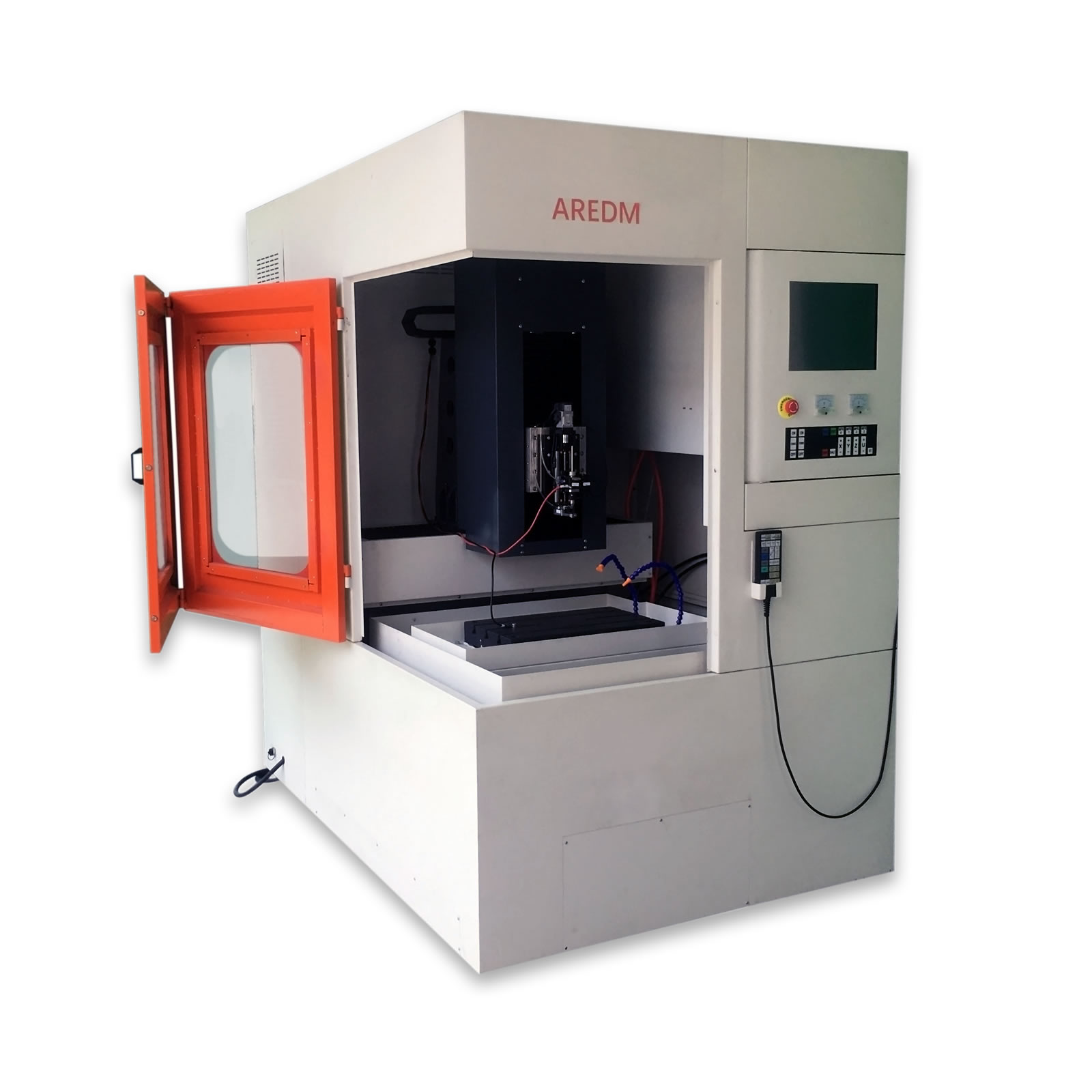

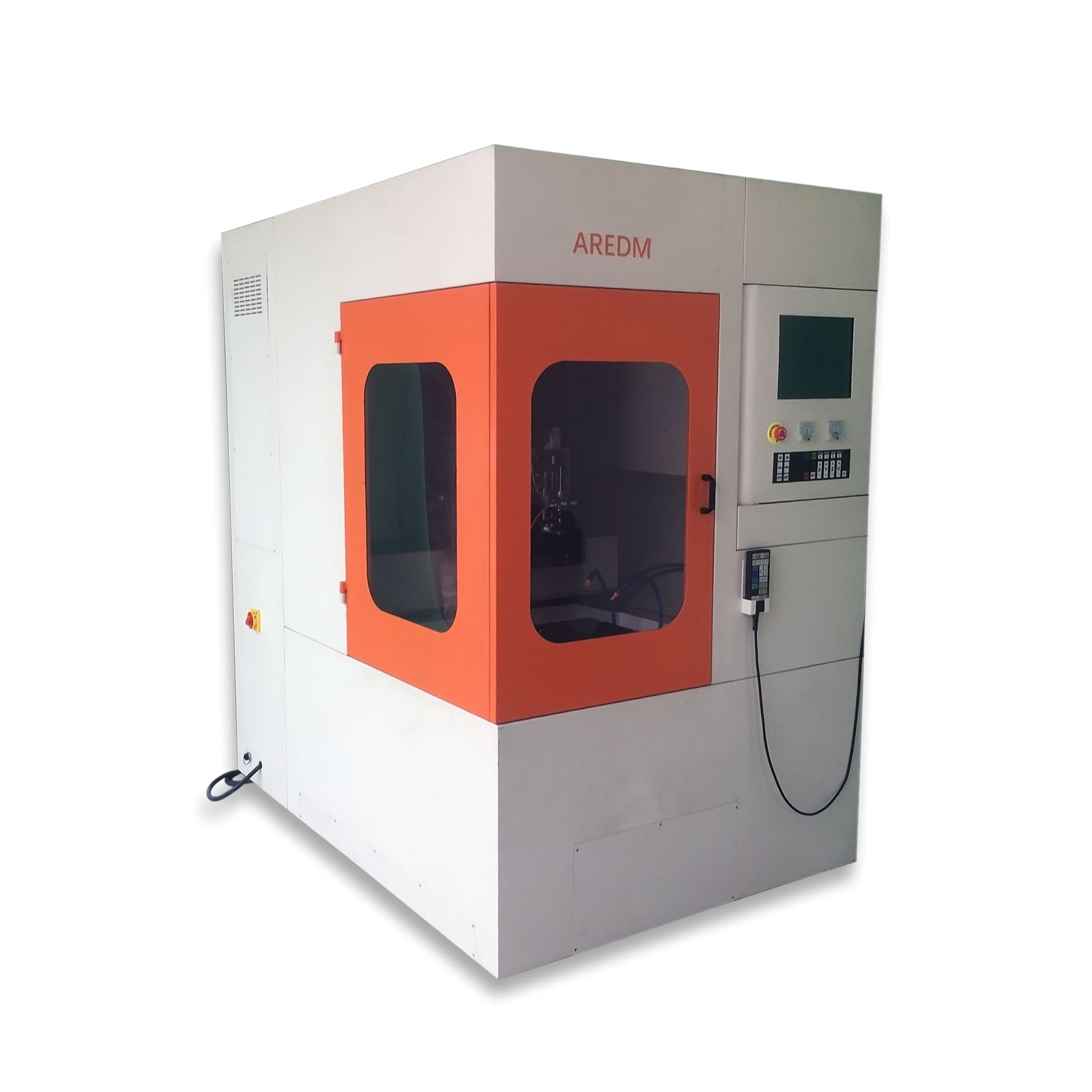

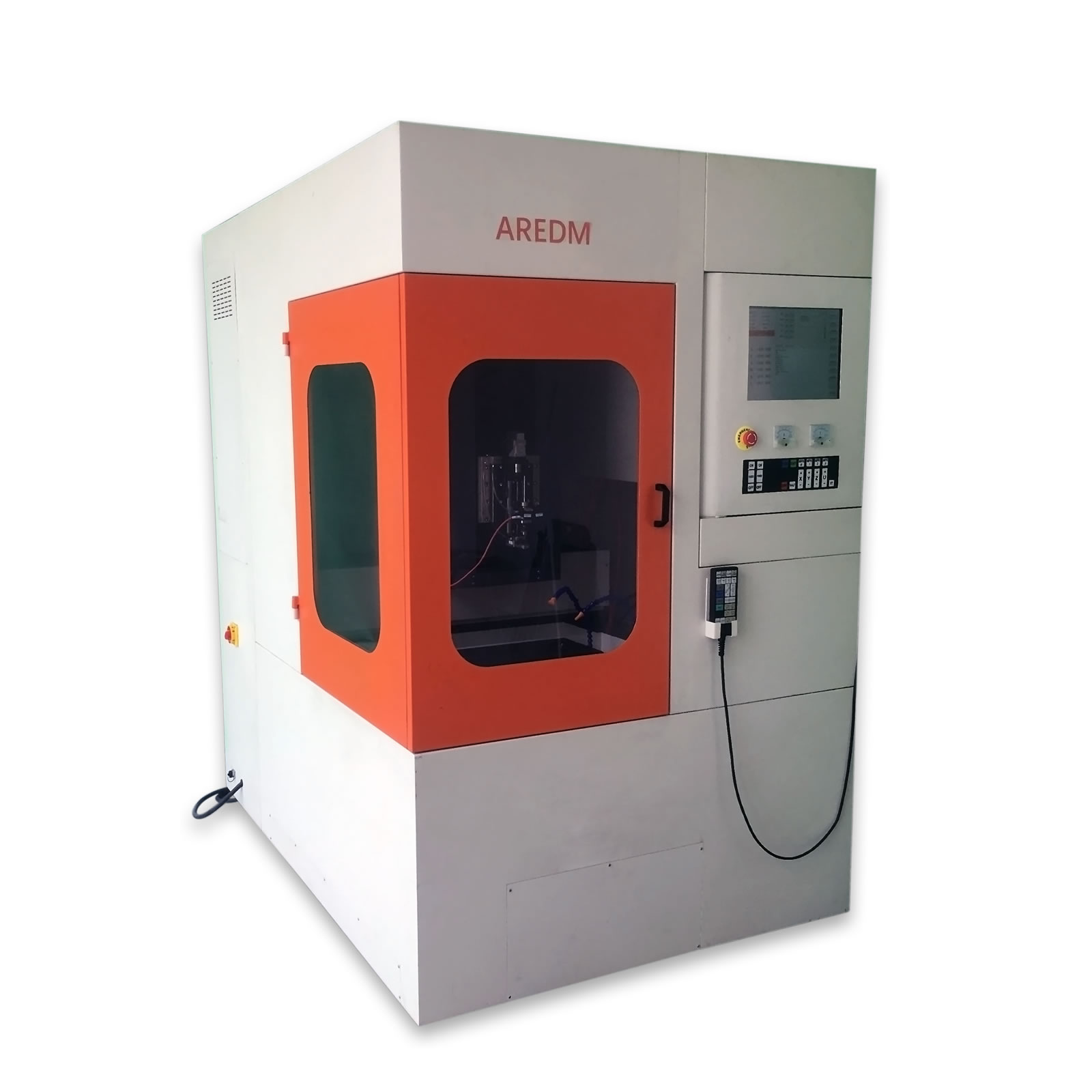

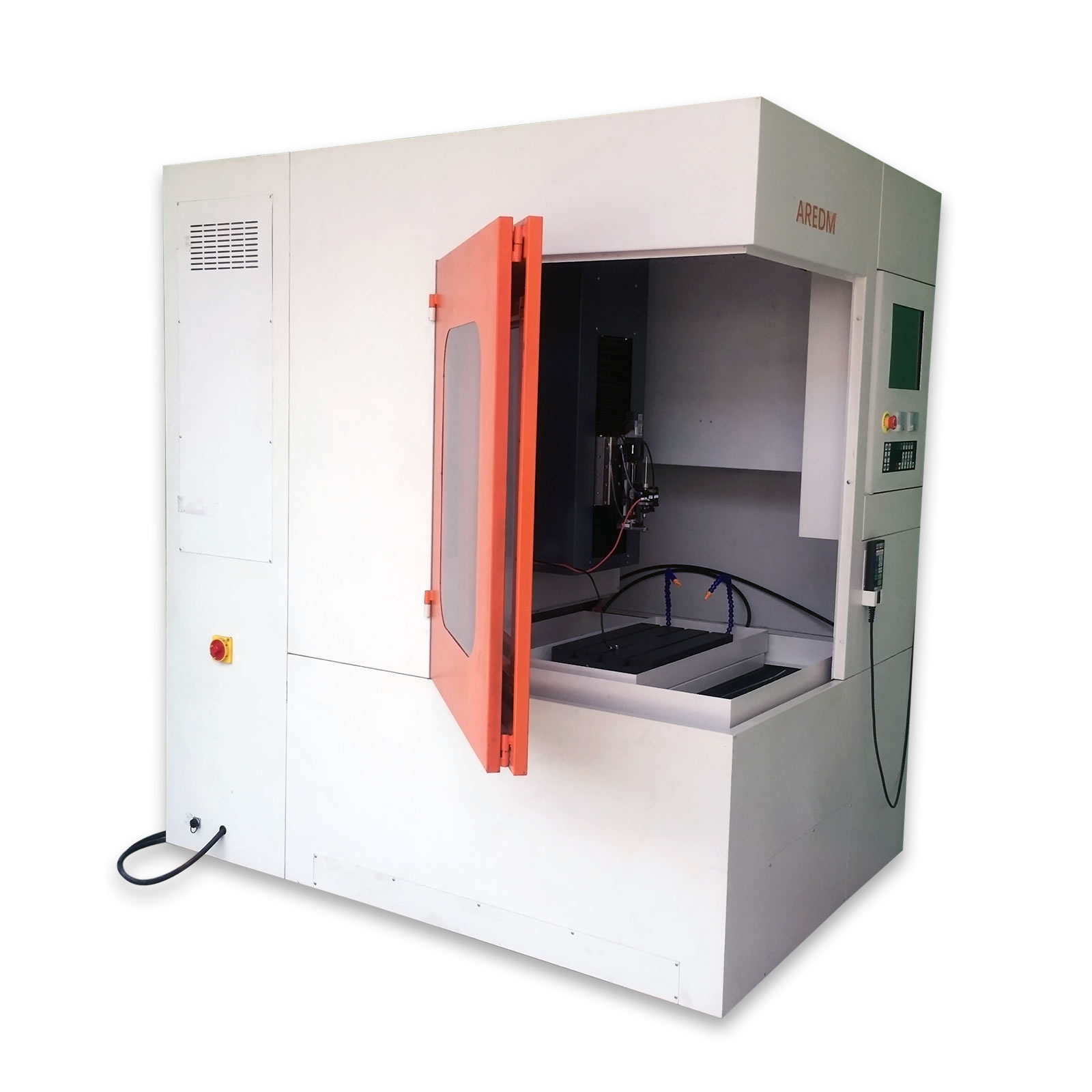

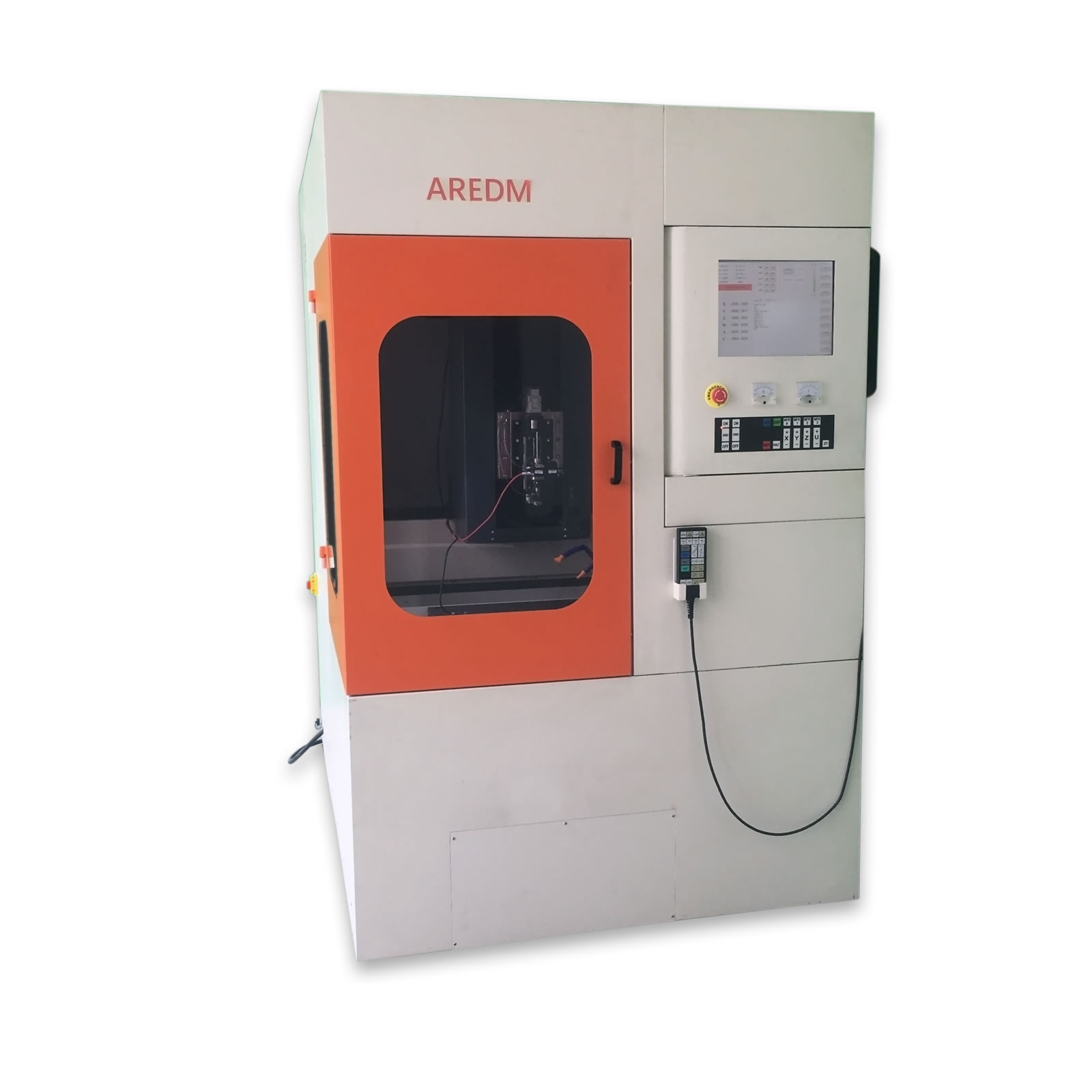

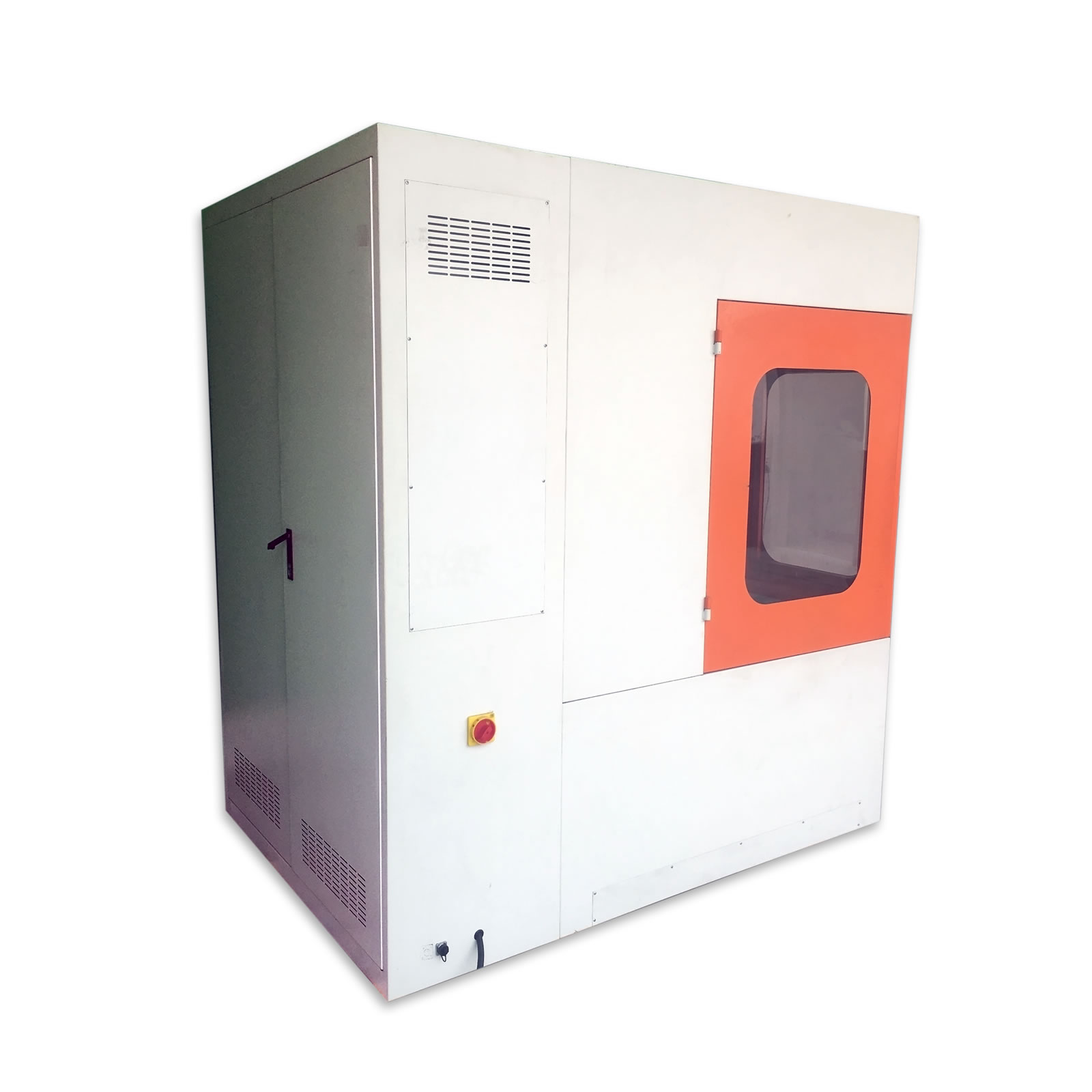

4-axis micro hole driller
  • Model: AD40M-A4
  • Name: 4-axis micro hole driller
  • Full Name: AD40 Four-axis EDM Micro Hole Driller
  • Features:
    1. Ideal for processing of group holes
    2. Support processing in CAD
    3. 100% penetration recognition
    4. Easy network for smart factory
    5. Terminal capacitor for higher efficiency
    6. Stable and fine switching power supply
    7. Self-developed precision six-axis EDM CNC system
    8. Rich processing library and parameters
AD40 Four-axis EDM Micro Hole Driller
  • Model
  • Name
  • Function
  • Power
  • Axis travel
  • Accuray
  • Axis number
  • Depth ratio
  • Max load
  • Hole range
  • Surface roughness
  • Pulse
  • Machine size
  • AD40M-A4
  • EDM Micro-hole Driller (4 axis)
  • EDM drilling small holes on hard-to-cut materials
  • 6KVA
  • 400*300*200*300mm
  • 0.02/0.02/0.02/0.02mm
  • 4
  • 15 : 1
  • 100kg
  • Φ0.1mm-Φ0.3mm
  • Ra0.2mm
  • 0.5μs
  • 133*188*211cm(W*L*H)
